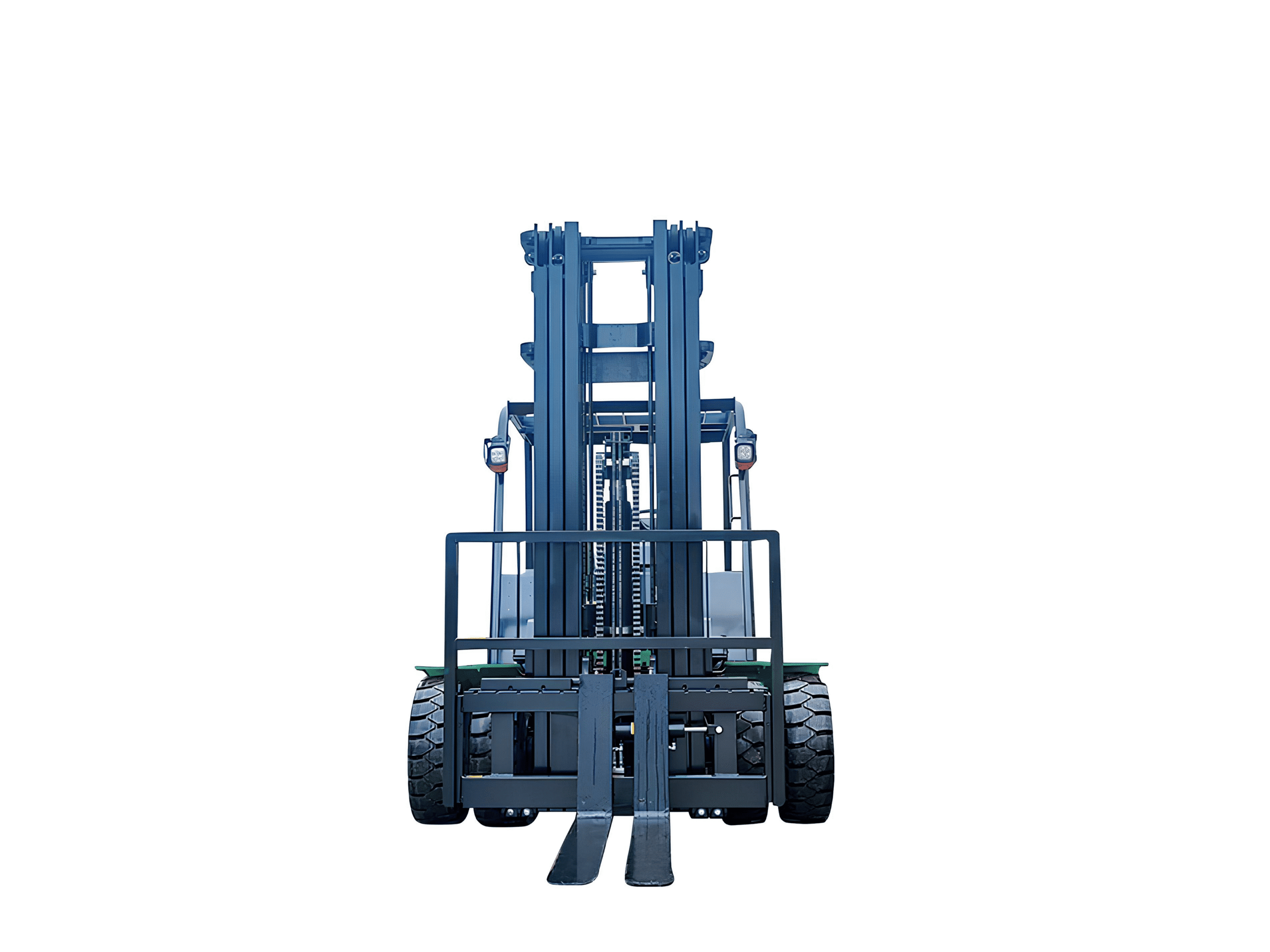

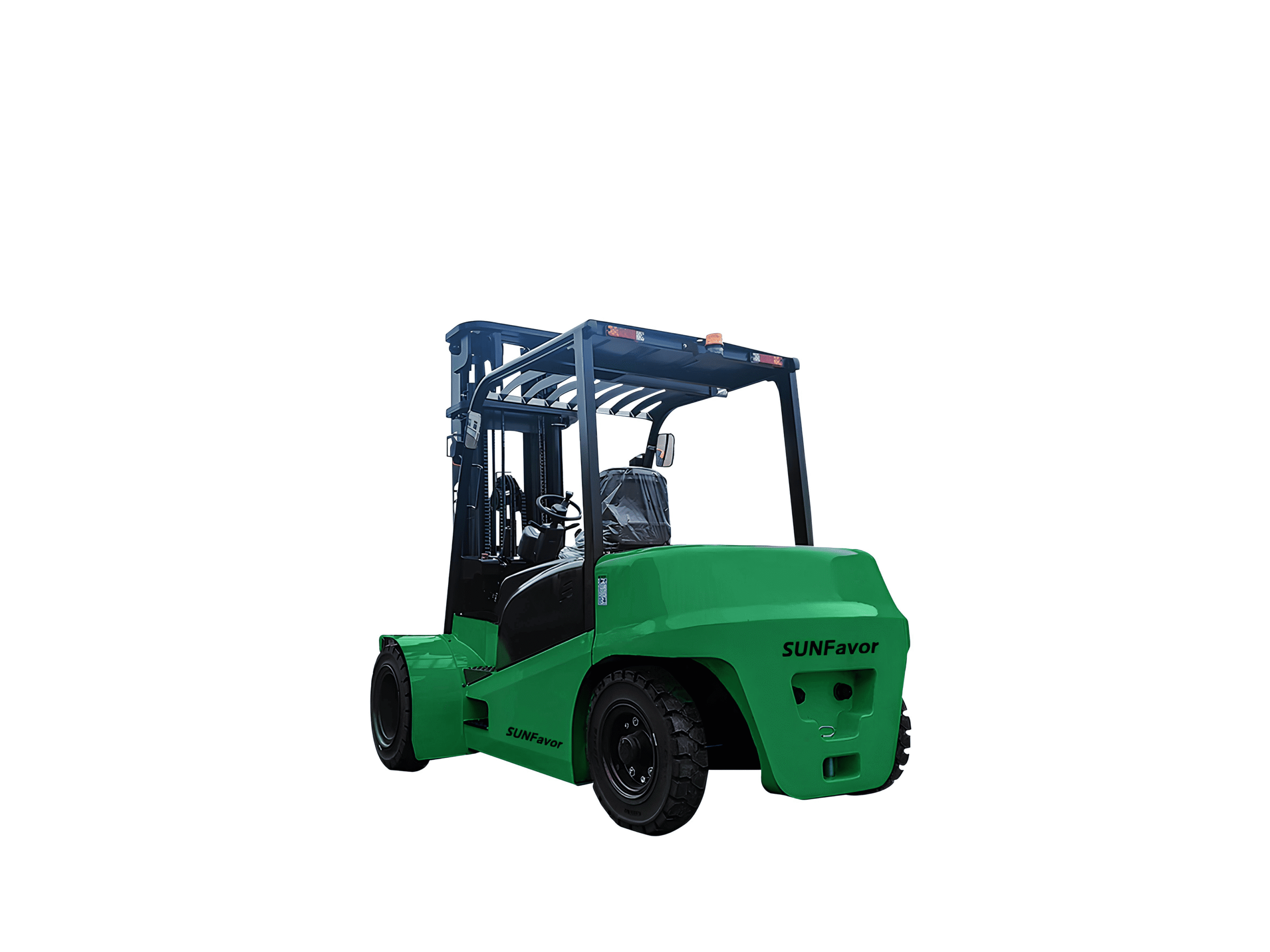

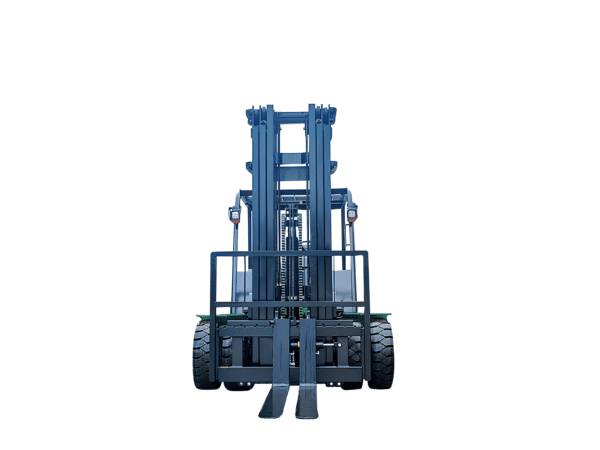

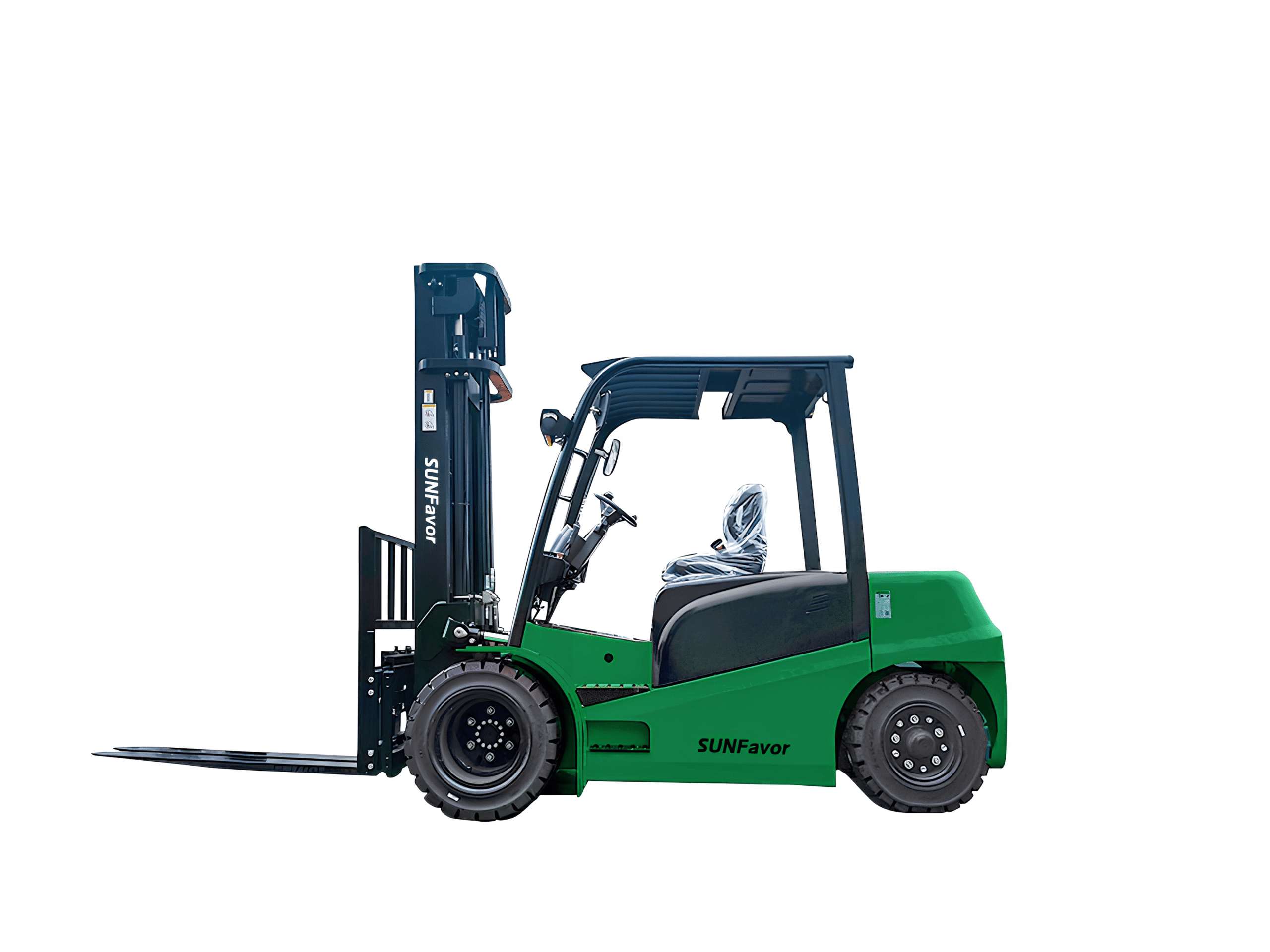

Electric Forklift SF50
$93,800.00
+1(250) 567-2755
Electric Forklift SF-FB50
Product Overview | Important Attributes | Packaging & Shipping Information | Product Highlights
Product Overview:
5T Electric Forklift by SUNFavor. An innovative design made with Lithium Power battery. Advantages of a lithium battery forklift include, 4000 Full charging cycles with at least 80% residual capacity, Maintenance free, and high safety and reliabilty.
Important Attributes
Model
SF-FB50
Rated load
kg
5000
Load center distance
mm
600
Power form
Lithium Battery
Wheelbase
mm
2250
Number of wheels (front/rear)
4×/2
Front wheelbase
mm
1470
Rear wheelbase
mm
1700
Front tire
8.25-15-14PR
Rear tire
8.25-15-14PR
Front overhang
mm
590
Mast tilt angle (front/rear)
°
6/12
Mast retraction height
mm
2500
Free lift height
mm
200
Maximum lifting height
mm
3000
Maximum height during operation
mm
4420
Height of roof rack
mm
2450
Fork size (length×width×thickness)
mm
1220×150×55
Body length (without forks)
mm
3440
Body width
mm
1995
Turning radius
mm
3250
Mast ground clearance
mm
200
Wheelbase center ground clearance (full load)
mm
220
Right angle stacking aisle width (pallet 1000×1000mm, clearance 200mm)
mm
5085
Right angle stacking aisle width (pallet 1200×1200mm, clearance 200mm)
mm
5285
Fork adjustment range (outside) max/min
mm
1840-300
Travel speed (full/empty load)
km/h
14/16
Lifting speed (full/empty load)
mm/s
360/400
Lowering speed
mm/s
420
Climbing ability (full load)
%
25
Net weight (including oil and water)
kg
9000
Battery voltage/capacity
V/Ah
76.8/560
Battery weight
kg
540
Drive motor power - 60 minutes
kW
30
Lifting motor power (S315%)
kW
2×26
Drive motor control method
MOSFET/AC
Lifting motor control method
MOSFET/AC
Traveling brake/Parking brake
Hydraulic/Mechanical
Hydraulic system working pressure
MPa
20.0
Packaging & Shipping Information
Packaging Details
Forklift Nude Packing.
Sales Unit
Single item
Rated load
5000KG
Product Highlights
★
Integrated Battery Management System (BMS)
★
Standard lithium battery
★
Standard fork
