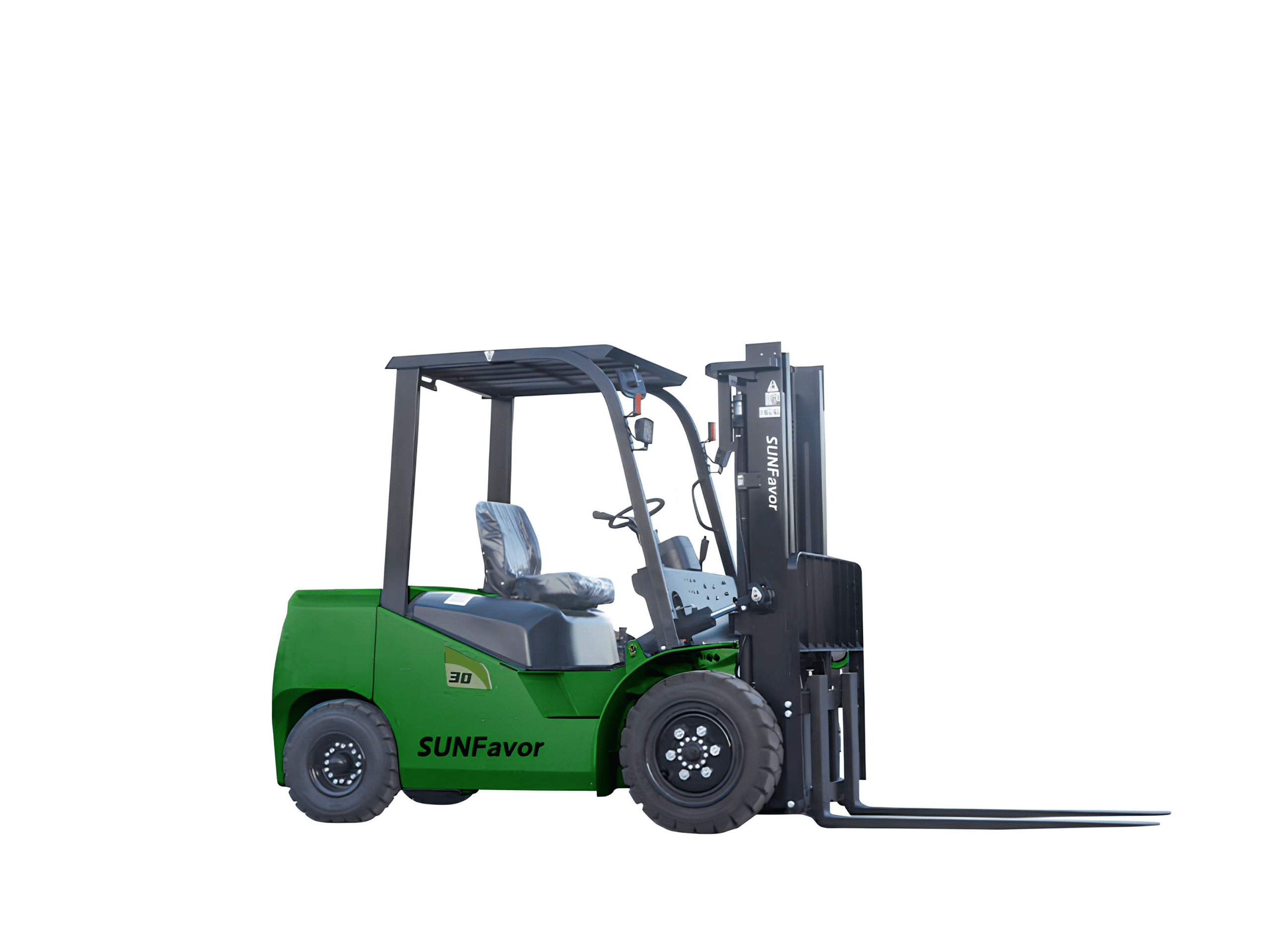

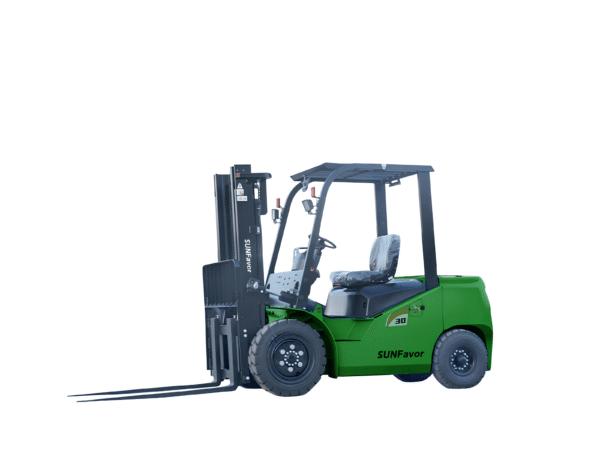

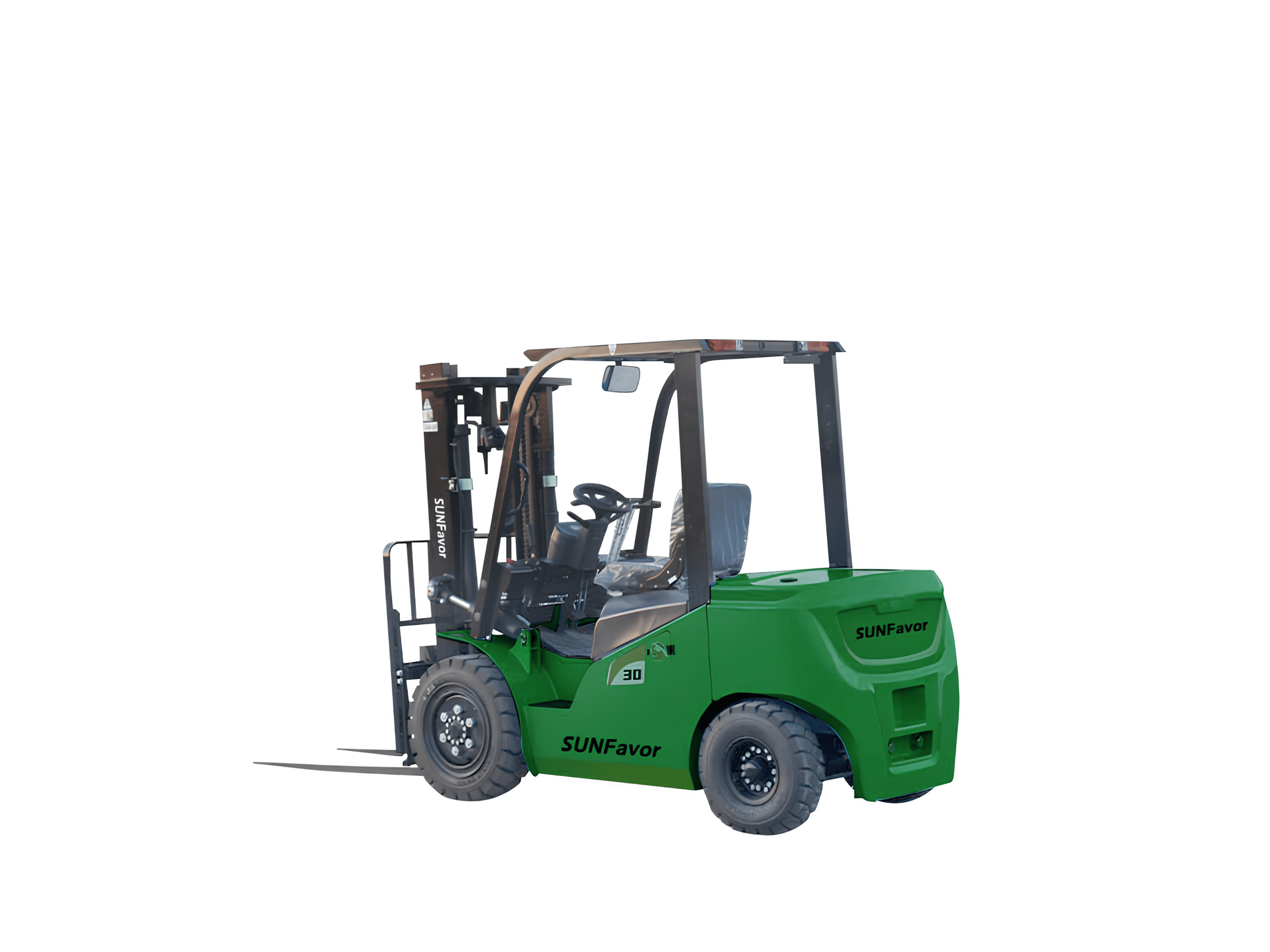

Electric Forklift SF30 PRO
$40,000.00
+1(250) 567-2755
Electric Forklift SF30 PRO
Product Overview | Important Attributes | Packaging & Shipping Information | Product Highlights
Product Overview:
3T Electric Forklift by SUNFavor. An innovative design made with Lithium Power battery. Advantages of a lithium battery forklift include, 4000 Full charging cycles with at least 80% residual capacity, Maintenance free, and high safety and reliabilty.
Important Attributes
Model
SF30 PRO
Power form
electric
Voltage platform
V
80
Operation form
Seated
Rated load
kg
3000
Rated Load Center Distance
mm
500
Front Overhang
mm
475
Wheelbase
mm
1650
Weight (with/without battery)
kg
4500/4280
Fully loaded axle load (front/rear)
kg
6750/750
Unladen axle load (front/rear)
kg
1830/250
Tire type (front/rear)
Pneumatic/Solid tire
Number of wheels (x=driven)
2x/2
Front Tire Size
28*9-15-14PR
Rear Tire Size
200-15-10
Front wheelbase
mm
1020
Rear wheelbase
mm
580
Mast tilt angle (front/rear)
°
6/12
Mast retraction height
mm
2125
Free lift height
mm
130
Maximum lifting height
mm
3000
Maximum height during operation
mm
4190
Height of roof rack
mm
2160
Overall length (without forks)
mm
2480
Overall width
mm
1225
Fork size
mm
1070*122*45
Outside fork spacing (min/max)
mm
260-1055
Mast Ground Clearance (unloaded)
mm
135
Minimum Ground Clearance
mm
150
Minimum turning radius
mm
2270
Travel speed (fully loaded/unloaded)
km/h
15/15
Lifting speed (full/no load)
mm/s
360/400
Lowering speed
mm/s
540/450
Maximum tractive effort
N
18500
Climbing speed (full/no load)
%
17/25
Traveling brake
hydraulic
Parking brake
Mechanical
Rated power of traction motor
kW
16AC
Fuel pump motor rating
kW
21AC
Battery type
Li-ion
Standard battery voltage/capacity
V/Ah
80/200
Hydraulic system working pressure
MPa
21
Packaging & Shipping Information
Packaging Details
Forklift Nude Packing.
Sales Unit
Single item
Rated load
3000KG
Product Highlights
★
Integrated Battery Management System (BMS)
★
Standard lithium battery
★
Standard fork
