SF-TCE10

Product Overview | Important Attributes | Packaging & Shipping Information | Product Highlights

Sunson Enzyme Product

Product Overview:

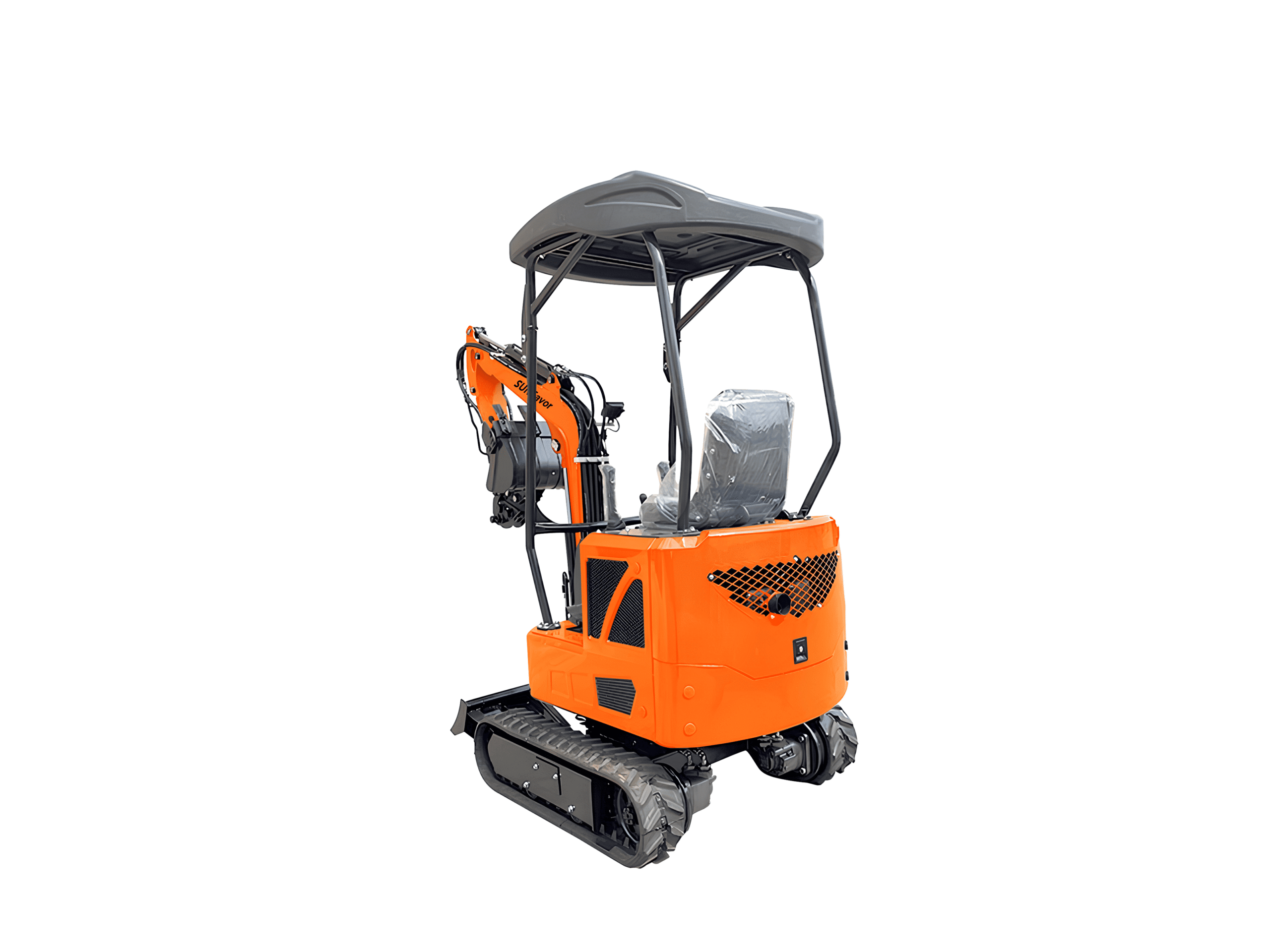

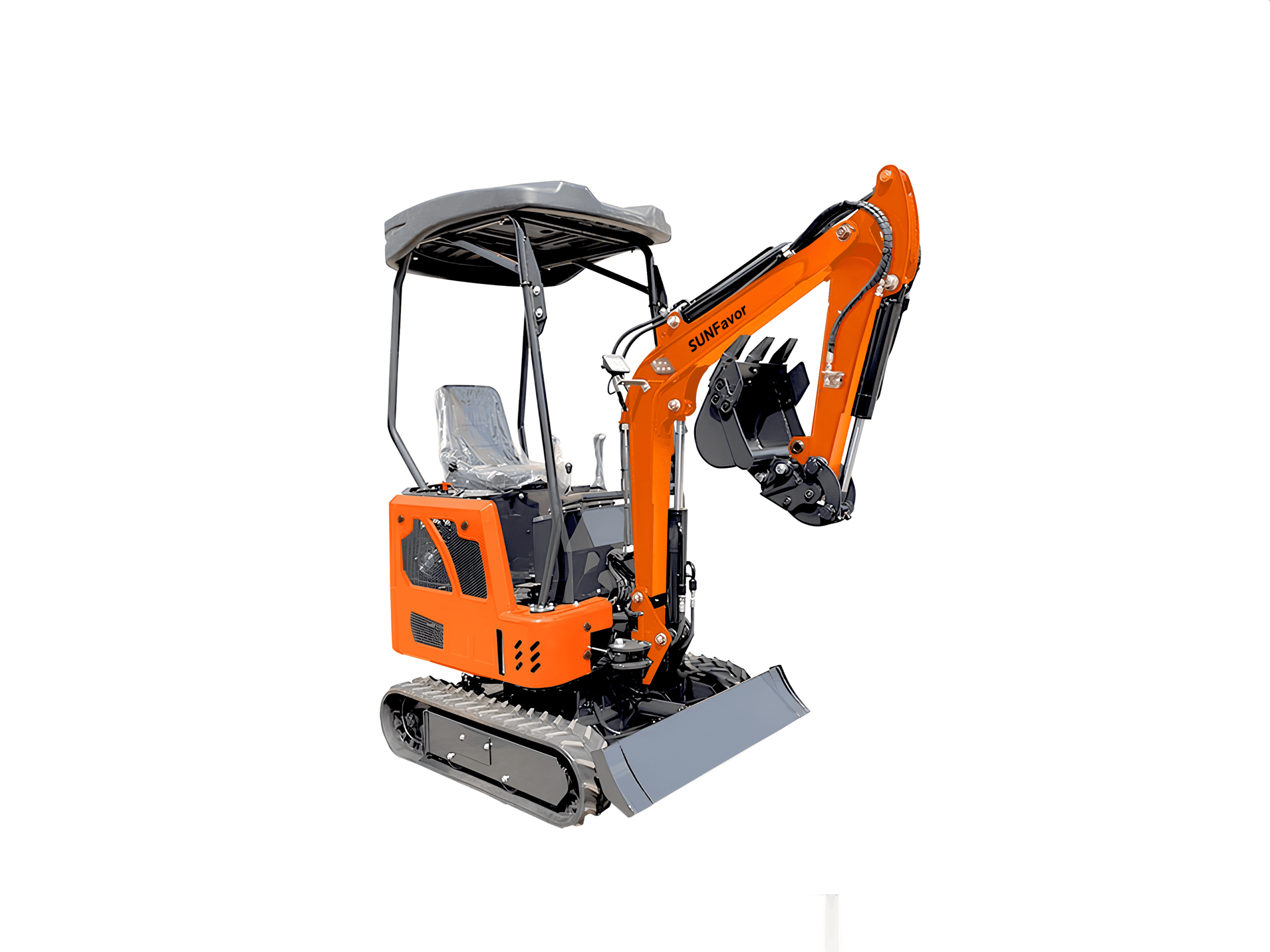

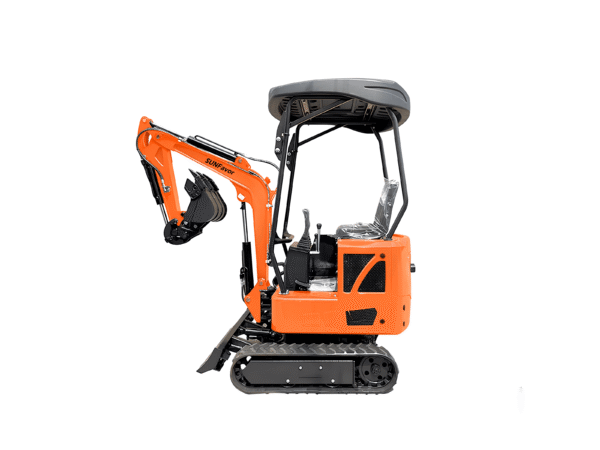

1T SUNFavor Mini Crawler Excavator is specially designed for home gardens and small-scale engineering projects. It features easy operation, low noise, environmental friendliness, and a compact body. It can also be equipped with attachments for multi-functional operation, making it suitable for orchard planting, landscaping, and small municipal tasks.

Important Attributes

Model
SF-TCE10
Performance Parameters
Unit
SF-TCE10
Operating Weight
Kg
1000
Engine Model
KOOP192F
Rated Power
Kw
10.3kw/14hp
Bucket Capacity
0.02
Bucket Width
mm
400
Max Digging Force
Kn
10.3
System Working Pressure
Mpa
18
Swing Speed
rpm
12
Traveling Speed
km/h
2
Gradeability
°
30
Ground Pressure
Kpa
22
Max. Digging Distance
mm
2450
Max. Digging Depth
mm
1320
Max. Digging Height
mm
2500
Max. Dumping Height
mm
1820
Min. Turning Radius
mm
1190
Overall Length
mm
2200
Overall Width
mm
940
Overall Height
mm
2150
Min. Ground Clearance
mm
380
Track Ground Length
mm
1200
Track Width
mm
180

Packaging & Shipping Information

Packaging Details
Excavator Nude Packing.
Sales Unit
Single item
Rated load
1000KG

Product Highlights

Reliable Hydraulics:Uses Shimadzu PGP1010 gear pump and Beifang multi-way valve for smooth, responsive control and stable hydraulic performance.

Dual BMG Motors:Travel and swing driven by dual BMG-315 motors, delivering balanced power and agile handling on varied terrain.

Compact & Portable:Weighs only 950 kg, easy to tow with a light trailer. Ideal for urban and confined job sites.
